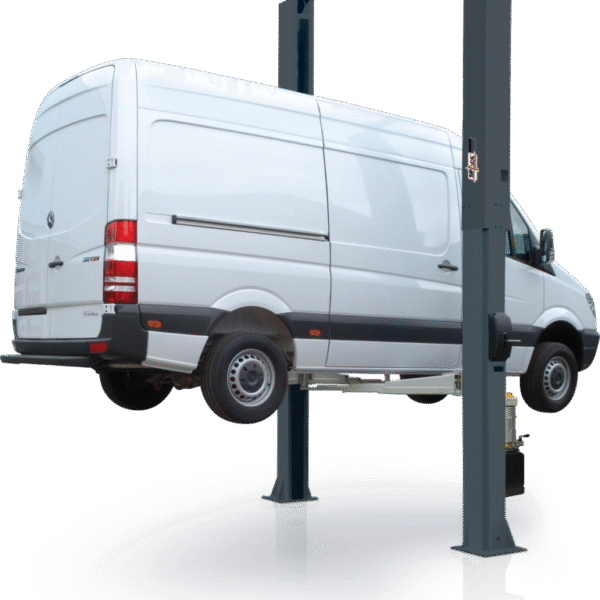

Liftmaster LMB4001/3 (Launch). Electro hydraulic 2 Post Lift. 4000Kg capacity.
2.2kw motor. 240V Supply requires. 30 AMP (C-Rated) Breaker.
3 Phase: 440V Supply, Neutral & Earth Protected By 16 AMP (C or D-Rated) Breaker.
With minimum pad height 110mm.
Electric Lock release safety locks,
2 Stage 1200mm symmetric arms.
Lifting Height: 1850mm.
Drive through Width: 2486mm.
Overall Height: 2900mm.
Overall Width: 3370mm.
Lifting Time: 50 seconds.
CE/TUV approved.
Double hydraulic cylinders, drive chain and chain wheels give even lifting and lowering.
Guard to cover chain and chain wheel to ensure safe operation.
Electro mechanical top limit switch to prevent hydraulic system overload.
Safety cable system to keep lifting arms synchronised.
Full rubber door guards
Delivered and installed with 2 years warranty.
Liftmaster LMB4001 (Launch TLT240SBA-1). Electro hydraulic 2 Post Lift. 4000Kg capacity. 2.2kw motor. 3 Phase: 240V Supply, Protected By 30 Amp (C-Rated) Breaker £2,420.00+vat Lease finance example: 1+59 months at £56.10+vat
Liftmaster LMB4003 (Launch TLT240SBA-3). Electro hydraulic 2 Post Lift. 4000Kg capacity. 2.2kw motor. 3 Phase: 440V Supply, Neutral & Earth Protected By 16 Amp (C-Rated) Breaker
£2,420.00+vat Lease finance example: 1+59 months at £56.10+vat
