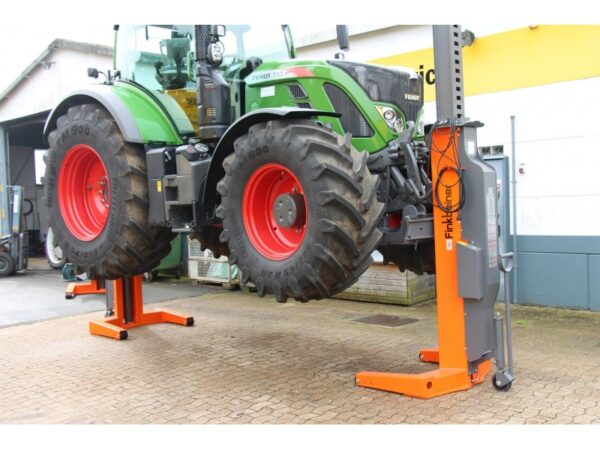

Finkbeiner Sets of WIRELESS movable columns for agricultural machinery. Power supply from built-in rechargeable batteries.
- The communication between the columns is carried out over the radio channel.
- Control panel on each column, equipped with an LCD display showing battery status, radio signal quality, lift height, number of active columns, control method, etc.
- Built-in hydraulic trolley for moving on each of the columns.
- Built-in charging cables and chargers on each of the columns, allowing charging of all columns from a single 220 V socket.
- Adjustable forks for wheels with different diameters.
- Built-in mechanical and hydraulic safety systems.
- Expandable up to 10 columns.
- Vario Speed - Select between normal and 1/3 normal lift and lower speed.
- Soft Control function – perfect synchronization of movement of all columns without jerks and distortions due to the control system with proportional valves.
- Soft Start function – provides a smooth start when lifting and lowering with a gradual increase in speed to normal.
- Sleep Mode function, which ensures that no radio signals are received when the columns are not in use, which reduces the likelihood of negative influence of signals from the columns on the operation of other wireless networks.
- There is a service mode in which the display shows error messages, control parameters of sensors, battery voltage, etc.
- Delivered and commissioning with basic onsite training
EHB907V11DC-2 Wireless Mobile Columns for Tractors 7.5 ton per column – 2 columns. Adjustable forks for wheels 550 – 1140mm fork length 385mm
NOTE :-Use optional adapters depending on type of tractor. TRT412XXX for wheel-free lifting of tractors at front and rear, each with basic cross beam and different load supports.
£10,993.00+vat Lease finance example 1+59 months at £589.12+vat
EHB905V20DC01-4 Wireless Mobile Columns for Tractors 5 ton per column – 4 columns. Adjustable forks for wheels 550 – 2000mm fork length 600mm
£25,415.00+vat Lease finance example 1+59 months at £589.12+vat
EHB707V25DC04-PR407 Wireless Mobile Column for Tractors 7 ton per column – 4 columns.Adjustable forks for wheels 550 – 2500mm fork length 700mm
£39,170.00+vat Lease finance example 1+59 months at £907.96+vat
EHB710V19DC-4-PR399Wireless Mobile Column for Tractors 10 ton per column – 4 columns.Adjustable forks for wheels 400 – 1900mm fork length 450mm
£40,279.00+vat Lease finance example 1+59 months at £933.67+vat
