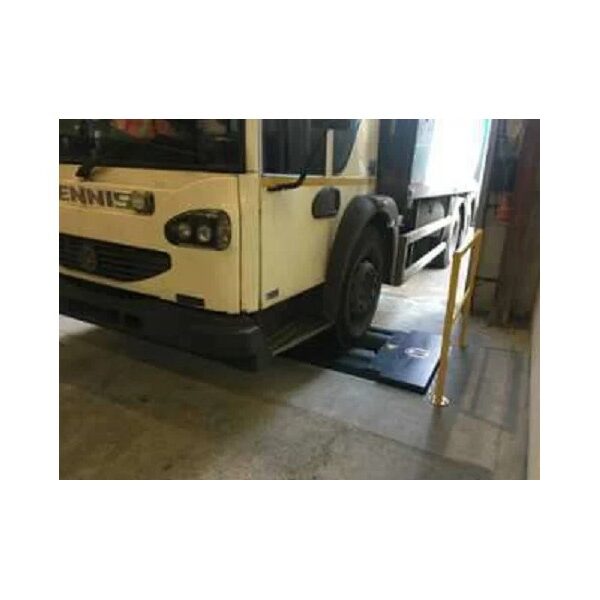

BM20200 Mobile brake tester, surface mounted, eliminating the need for groundwork so the equipment can easily be moved between locations and quickly set up to carry out testing. Simple to use and upon completion of testing produces a printed report detailing the information required by DVSA in the UK. Ideally suited for fleet operators carrying out periodical testing of their vehicles and for servicing facilities conducting diagnostic testing or post-repair testing of vehicles.
- Mobile design for easy location
- In cab one man operation from behind the wheel using an Android Tablet
- Full DVSA Database with DTP Numbers
- Bi-directional testing
- Suitable for testing 4WD vehicles
- Reversible (Test of 4×4, 6×6 and 8×6 driven vehicles.)
- High friction durable rollers
- Motors 2 x 4.8kw 415v 50Hz 3ph
- IP55 Protection
- Braked rollers for easy access and exit
- 13t axle test weight
- 20t axle drive over weight.
- Integral axle weighing system
- Auto weight 6TD weighing system. axle weighing and vehicle total weight.
- Up to 3 displays can be connected
- PC Controlled Mobile Commercial Roller Brake Tester
- P.C. with 27″ Monitor, Wireless Keyboard & Mouse
- Bluetooth Colour Printer.
- 10″ Tablet Bluetooth Colour Printer.
- Advanced data collection, storing and presentation of test results.
- Data capture available from a complete inspection lane.
- Suitable for outdoor use
- PC Controlled Mobile Commercial Roller Brake Tester
- Auto weight 6TD weighing system. axle weighing and vehicle total weight.
- Up to 3 displays can be connected.
- Mobile Trolley
- Delivered, set up, calibrated & commissioned with basic on site training
- Warranty 3 years full warranty. All warranties are carried out by the manufacturer and are subject to their terms and conditions. Service/Calibration contract required.
- Please note, they will require the equipment to be serviced / maintained as per their conditions of sale or the warranty maybe void.
BM20200 Mobile Brake tester. 4.8 kw motors. For Operator testing of trucks, coaches & trailers
BM20200 Mobile Brake tester. 4.8 kw motors. For Operator testing of all trucks, coaches & trailers £35,520.00+vat Optional Lease finance 1+59 months at £800.17.00+vat
BM20200 CD325046 Set of non-slip 1.65m extension ramps to allow testing of tri axle trailers. £4,199.00+vat Optional Lease finance 1+59 months at £97.36+vat
Delivery:- Generally 4 kw BM20200 RBT’s are ex-stock UK warehouse.
Alternatively
BM20200ATF. Fully approved for use in DVSA ATF Designated Test Lanes. 11 kw motors. Class IV, V, VII,HGV and PSV approved. For all cars,vans,trucks, coaches & including tri axle trailers. Supplied with CD325046 Set of non-slip 1.65m extension ramps £45,250.00+vat Optional Lease finance 1+59 months at £1048.90+vat
