The AC Hydraulics innovative new standard of lifts with 2 – 5 columns for lifting trucks and buses with one front axle and up to four further axles.
The lift comes pre-assembled in a hot galvanized steel cassette. After
completing ground work it only needs to be connected to the electrical
control cabinet – Plug and Play!
The lift is at floor level – especially suitable for vehicles with low clearance.
The robust non-slip rolling aluminium cover has an impressive drive over capacity of 7 t
One column is fixed and the others are moveable, each one with 15 t capacity
The columns can be used individually or synchronized. The columns are
precisely controlled by the user friendly touch screen remote control
Safety features are optimized with two independent hydraulic circuits in each
column and comply with European Standard EN1493
Prices to include delivery, commissioning of the lift after installation
and Training

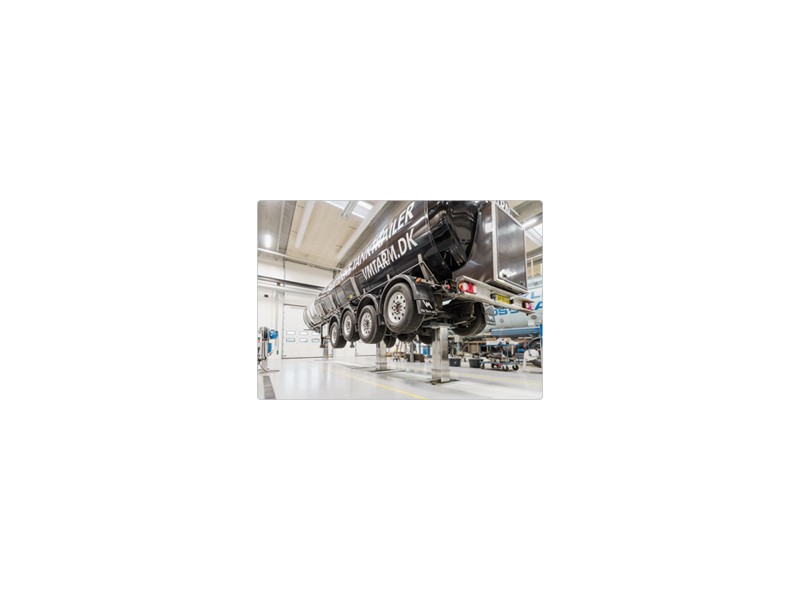

AC-Hydraulics UL-4 /Liftmaster Inground Lift. Four cylinder version total capacity 60 tons. 3 moveable columns / 1 fixed. Stroke 1900mm. Cassette length 17400mm . Cassette width 1030mm.
Lifting points distance 1300-16500mm. Speed up / down 80 seconds. Power requirement 24kw
£71,570.00+vat
Lease finance example 1+59 months at £1,659.00+vat
